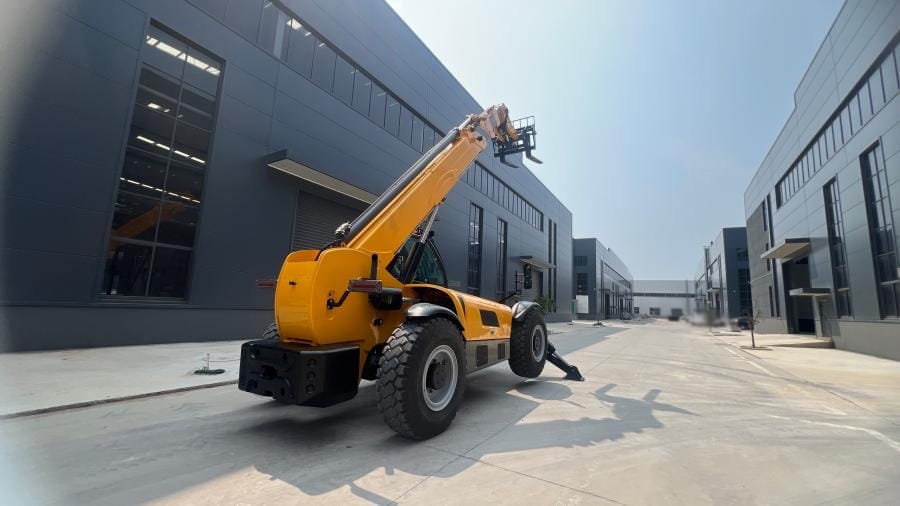

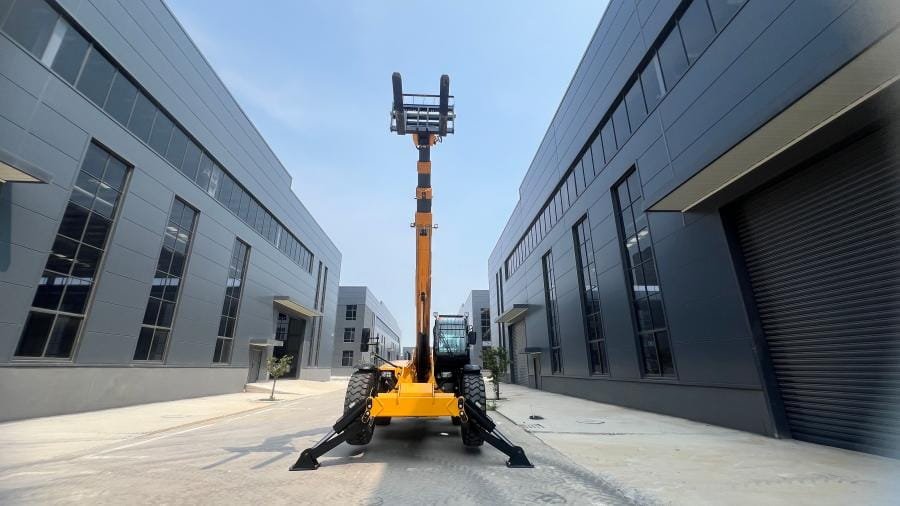

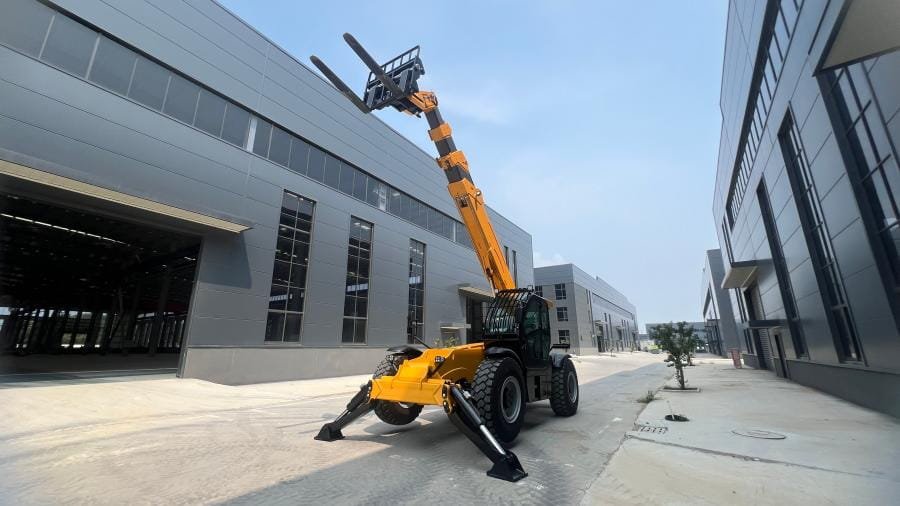

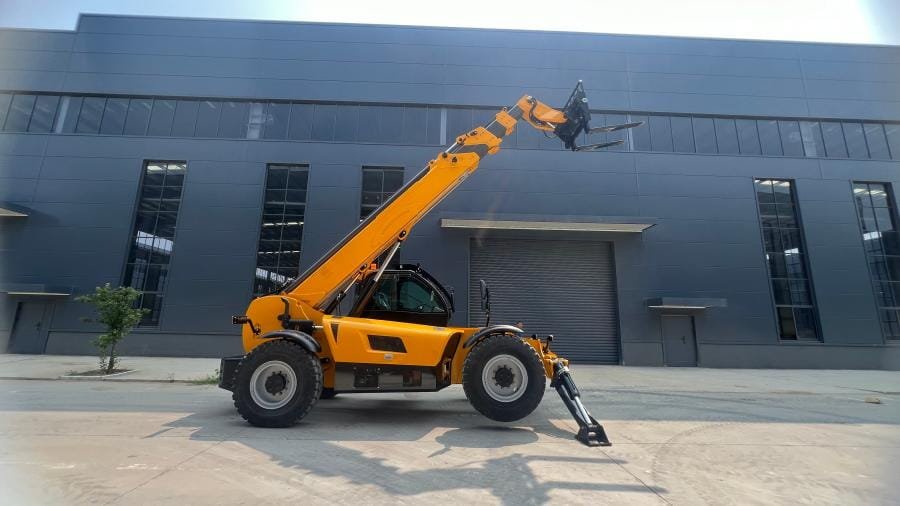

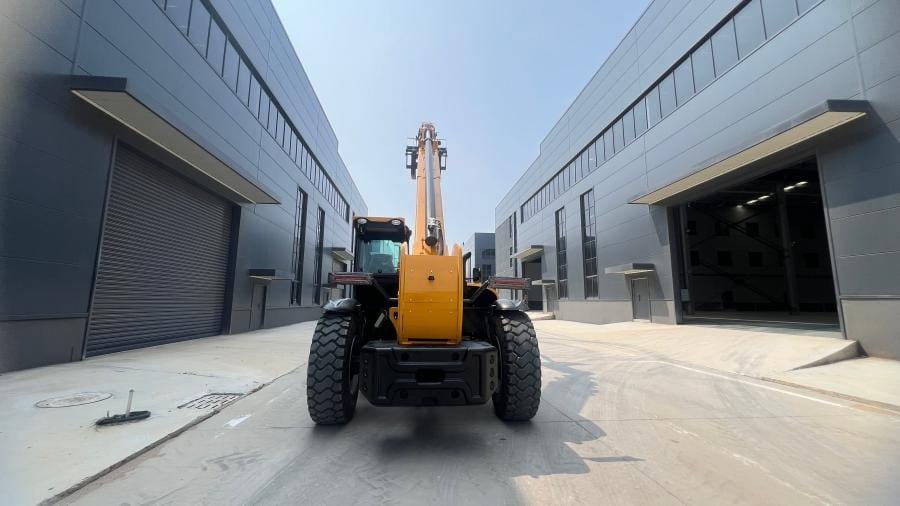

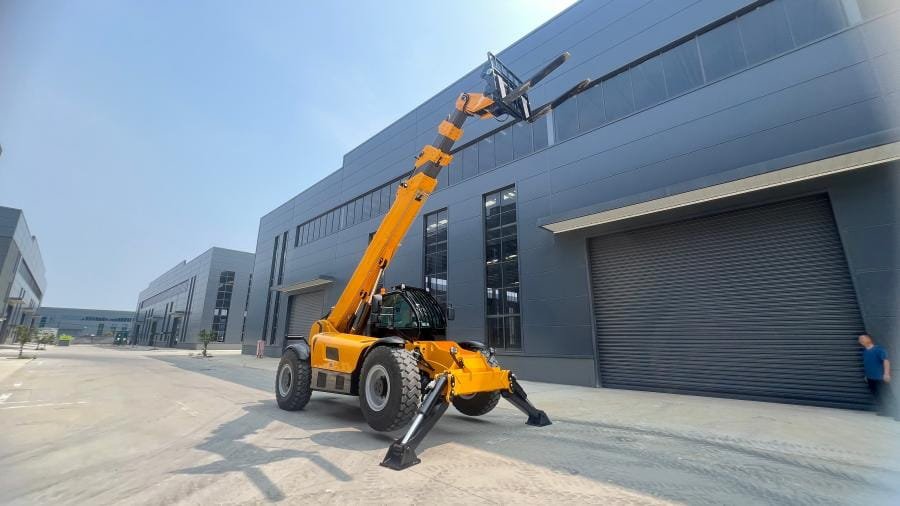

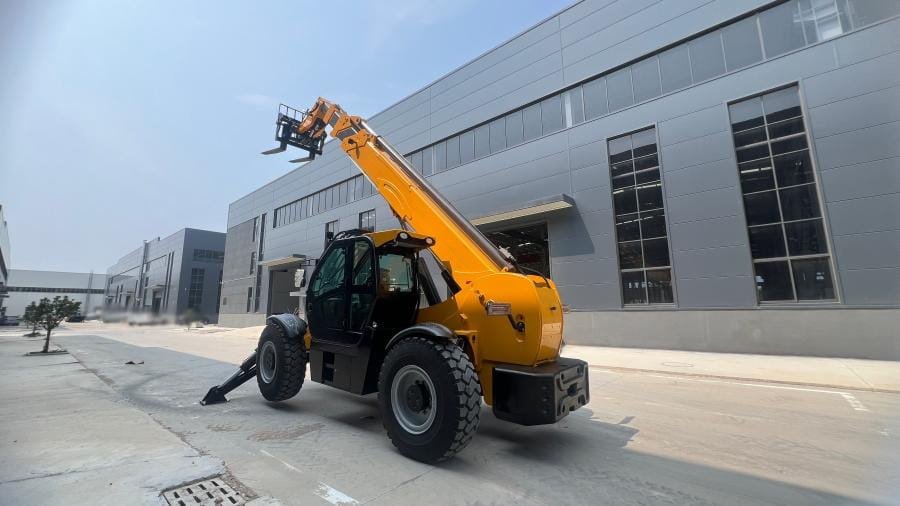

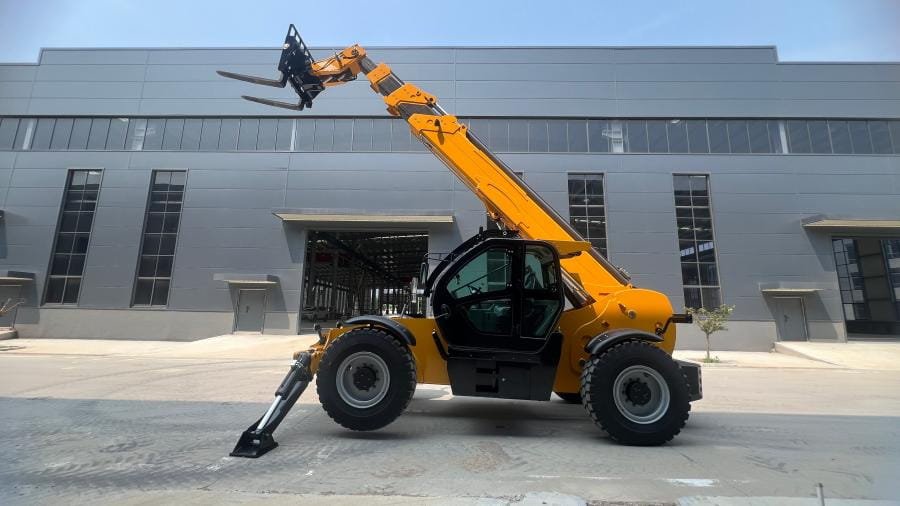

| Model | HW6018-B |
| Engine | Yuchai |
| Power | 110 kW |
| Emission Standard | National II (China) |
| Operating Weight | 17000 kg |
| Rated Load Capacity | 6.0 Tons |
| Max. Lifting Height | 17.3 m |
| Dimensions (LWH) | 7100 x 2600 x 2850 mm |
| Hydraulic Oil Capacity | 220 L |
| Fuel Tank Capacity | 260 L |
| Axles | Wet braking axles (Zhuoshibo) |
| Cabin | Luxury cabin |
| Transmission System | Hydraulic torque converter |
| Drive Mode | Full electronic control |
| Gears | F4 / R4 (4 Forward / 4 Reverse) |
| Telescopic Boom | 4-Section |
| Boom Material | BS1000 High-strength manganese steel |
| Forks | 1220 mm Floating/Sliding pallet forks |
| Frame Leveling Function | Supported (Frame Tilt) |
| Tire Model | 17.5-25 Tubeless tires (Advance Brand) |
| Max. Travel Speed | 40 km/h |
| Quick Hitch | Hydraulic quick coupler |
| Hydraulic System | Electro-hydraulic load-sensing proportional system |
| Engine Hood | Fully-opening stamped steel hood |
| Remarks | Includes outriggers and cast iron counterweight |
Whether you need a standard machine or a custom solution, our engineers are ready to assist. Please provide as much detail as possible so we can quote accurately and quickly.
