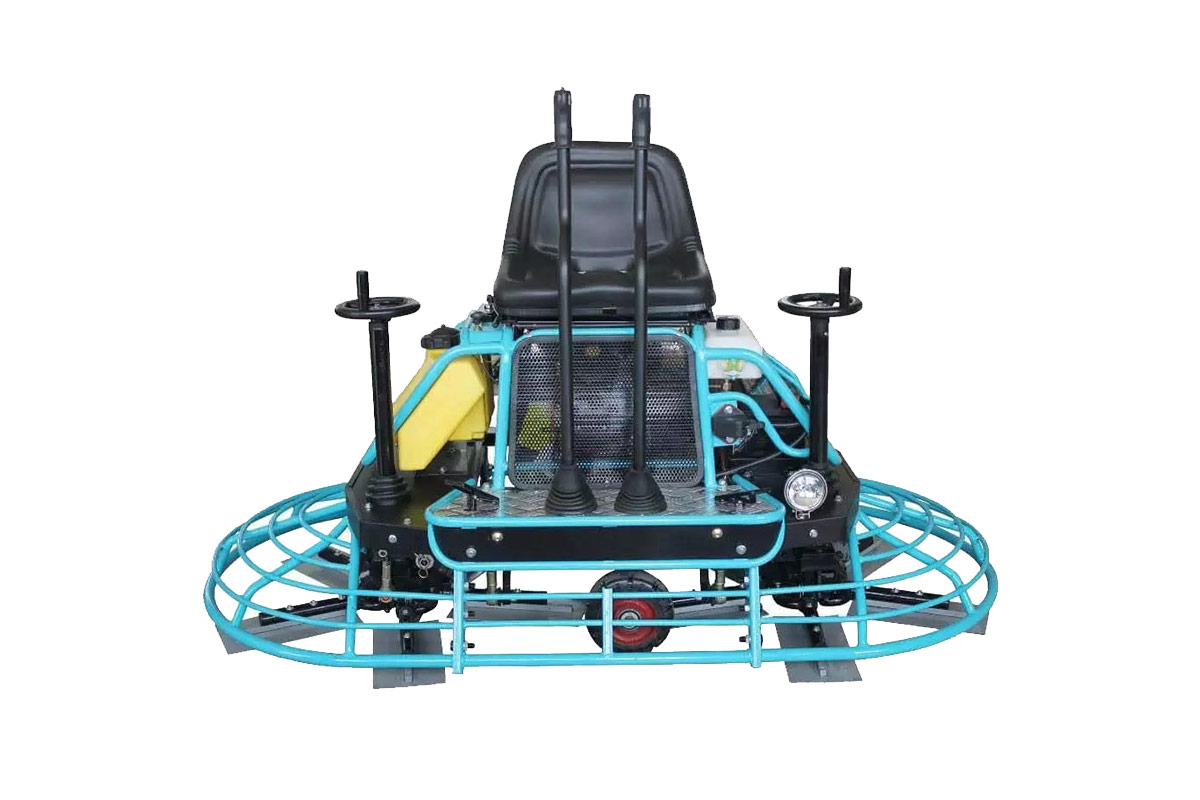

Mainly for the large-area cement floor and professional ultra-flat ground pulping, compaction, smoothing, smearing;
It is equipped with honda gasoline engine, quality assurance, superior performance and easy start-up;
Gearbox with large modulus design, aluminum alloy case, maintenance-free and long service life;
The trowel blade support arm is made of ultra-large-diameter carbon structural steel which is strictly heat-treated, which can adapt to the individual workers operation;
The scientifically designed centrifugal clutch transmission mechanism has large transmission torque, long service life and convenient maintenance;
Low center of gravity design makes the machine run smoothly and flexibly;
The surface adopt plastic sprayed, beautiful , rust and corrosion resistant.
Model | HWP-1000 |
Engine mode | Honda GX690 |
Efficiency | 24hp/3600rpm |
Disk diameter | 1000mm |
Work speed | 0-135rpm |
Spatula piece number | 2x4 pcs |
The size of the spatula | 310×150mm |
Engine type | Two cylinder,air cooled four stroke gasoline engine |
Tank capacity | 20L |
Lubricating oil quantity | 1.8L |
Fuel consumption | 313g/kwh |
Operation mode | Driving operation |
0utline size (L*W*H) | 2100*1000*1050mm |
Weight | 380kg |
